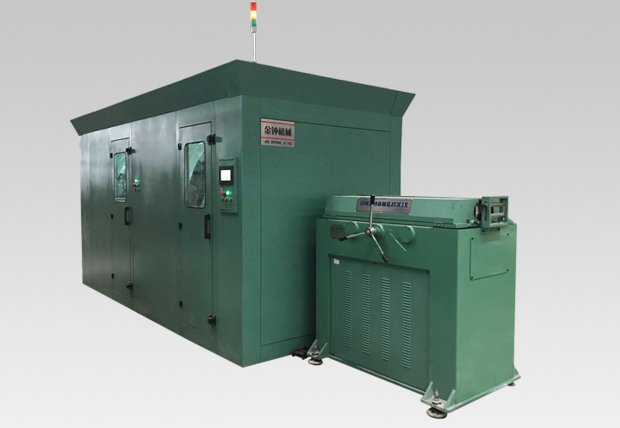

BJZ series CNC high-speed wire knitting machine

BJZ serles high speed braiding machine strure and features:

1.BJZ series wire braiding machine is my company to developed the design of a high-speed wire braiding machine.
2.The machine has high speed compared with the ordinary steel wire knitting machine efficiency is a little more than 1 times.
3.Easy operation, high precision. This machine all adopt the automatic control,PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision of weaving. Reduce the operation difficulty of the workers.
4.Fully enclosed structure to reduces the noise and improve the performance of workers safety equiprment.

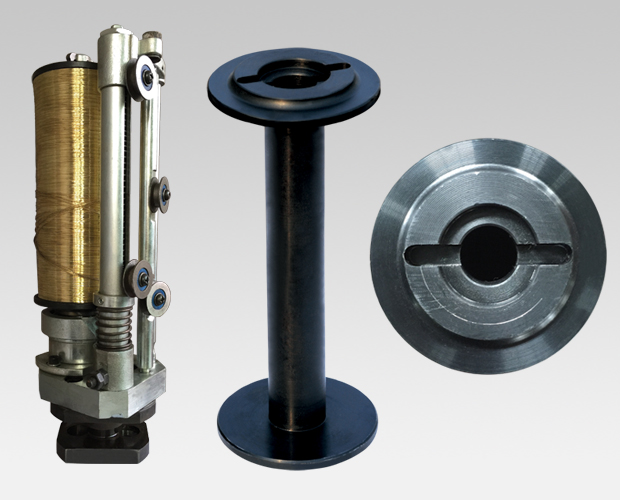

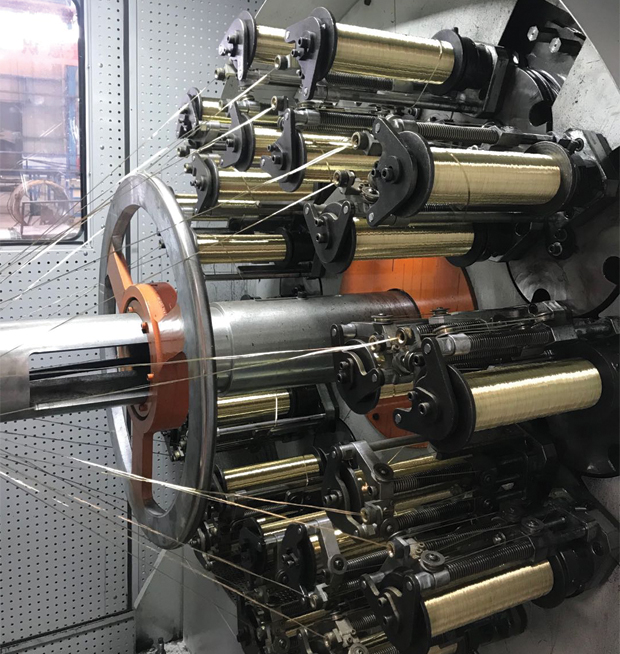

5.The spools Large capacity, saves the steel waste and reduce the line frequency and improve work efficiency.
6.No rubber stop alarm function.
7.Break line stop alarm function.
8.Fixed length function.
9.Fault detection capabilities.
10.Three color alarm prompt.
11.Three color alarm prompt.

Technical parameters:

BJZ series single disk CNC high-speed wire loom technical parameters
Product model	Spindle largest revolutions (r/min)	Weaving pitch (mm)	Maximum braided hose Diameter (mm)	The central height (mm)	Motor power (kw)	Braided Angle	Bobbin capacity (kg)	Overall dimensions (L×W×H)
BJZ-16	45	13-71	Φ10	1080	8.5	54°44'	7.5	3765×1728×2150
BJZ-20	35	15-92	Φ13	1080	10.5	54°44'	7.5	3765×1728×2150
BJZ-24	30	18-110	Φ25	1080	10.5	54°44'	7.5	3765×1728×2150
BJZ-36	18	30-179	Φ51	1300	14	54°44'	7.5	4027×1980×2450

BJZ series doublele disk CNC high-speed wire loom technical parameters
Product model	Spindle largest revolutions (r/min)	Weaving pitch (mm)	Maximum braided hose Diameter (mm)	The central height (mm)	Motor power (kw)	Braided Angle	Bobbin capacity (kg)	Overall dimensions (L×W×H)
BJZ16-2S	45	13-71	Φ10	1080	8.5	54°44'	7.5	5713×1728×2150
BJZ20=2S	35	15-92	Φ13	1080	10.5	54°44'	7.5	5713×1728×2150
BJZ24-2S	30	18-110	Φ25	1080	10.5	54°44'	7.5	5713×1728×2150
BJZ36-2S	18	30-179	Φ51	1300	14	54°44'	7.5	6185×1980×2450
