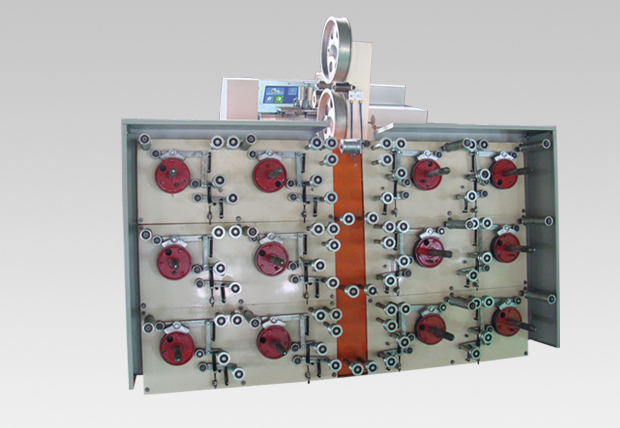

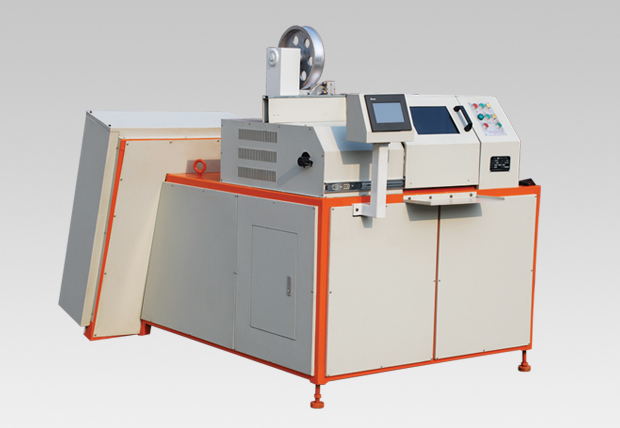

ZHG Series CNC Economic Steel Wire Plug Machine

Description:

This equipment is a kind of steel wire knitting machine auxiliary equipment, mainly used for winding multiple steel wires in a certain order on the shaft of the steel wire knitting machine for the weaving machine.
ZHG-B series stranding machine is my company to develop design and manufactuning of the fourth generation of wire stranding machine.

ZHG-B serles stranding machine strure features:

The take-up parts adopt fully automatic digital control, (PLC+ HMI).
1.Taking part adopts professional pay-off motor control of pay-off tension brake type,has the characteristics of the pay-off tension constan.
2.Determine the tension good permanent.
3.Disconnect automatically stop.
4.The line in Fixed length function.
5.Trichromatic lamp.
6.The fault prompt functions.

Technical parameters:

ZHG series CNC stranding machine Technical parameters:
Product model	Spindle revolutions (m/s)	Take-up control model	Alignment control mode	The speel diameter (mm)	Wire diameter (mm)	Overall dimensions (L×W×H)
ZHG-12	1850	PLC+Interface+HMI	Automation control	Φ180	Φ0.2-Φ0.4	1890×1740×1635
ZHG-18	1850	PLC+Interface+HMI	Automation control	Φ180	Φ0.2-Φ0.4	2730×1742×1635
