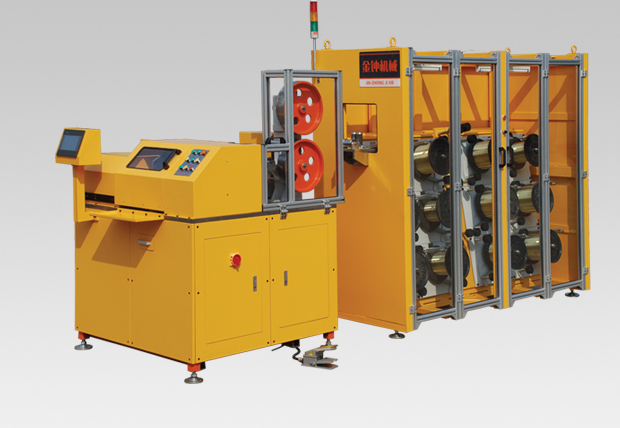

ZHG-B Series High Speed Steel Wire Plug Machine

Description:

This equipment is a kind of steel wire knitting machine auxiliary equipment, mainly used for winding multiple steel wires in a certain order on the shaft of the steel wire knitting machine for the weaving machine.
ZHG-B series stranding machine is my company to develop design and manufactuning of the fourth generation of wire stranding machine.

ZHG-B serles stranding machine strure features:

1.The take-up parts adopt fully automatic digital control, (PLC+ HMI).

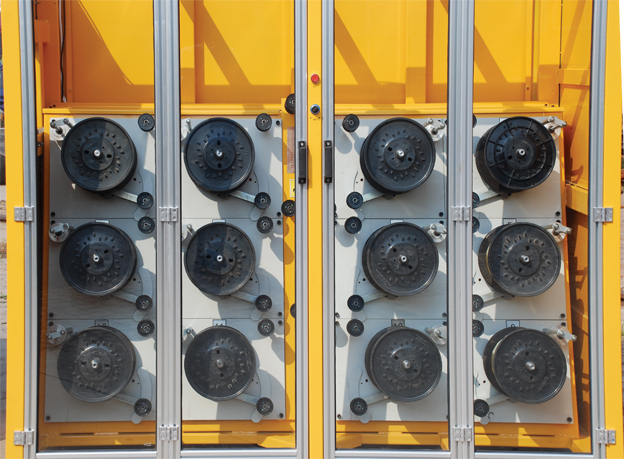

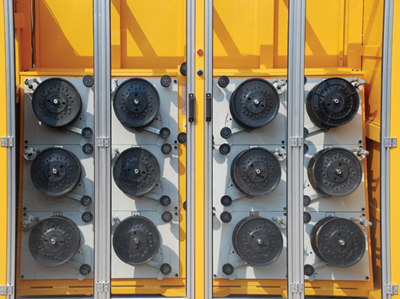

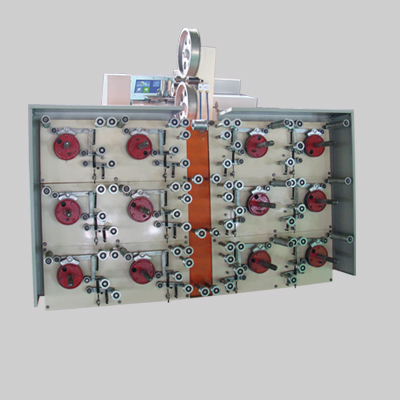

2.Taking part adopts professional pay-off motor control of pay-off tension brake type,has the characteristics of the pay-off tension constan.
3.Determine the tension good permanent.
4.Disconnect automatically stop.
5.The line in Fixed length function.
6.Trichromatic lamp.
7.The fault prompt functions.

Technical parameters:

ZHG-B series wire stranding machine the main technical parameters
Product model	Closed linear speed (m/s)	Take-up control model	Alignment control mode	The speel diameter (mm)	Wire diameter （mm）	Plyi number	Overall dimensions (L×W×H)
ZHG-B-12	10	PLC+HMI	Automation control	Φ180	Φ0.2-Φ0.4	12	3658×1160×1840
ZHG-B-18	10	PLC+HMI	Automation control	Φ180	Φ0.2-Φ0.4	18	4533×1130×1840
