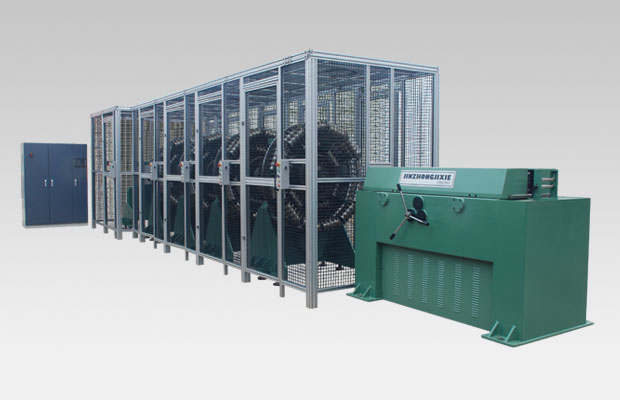

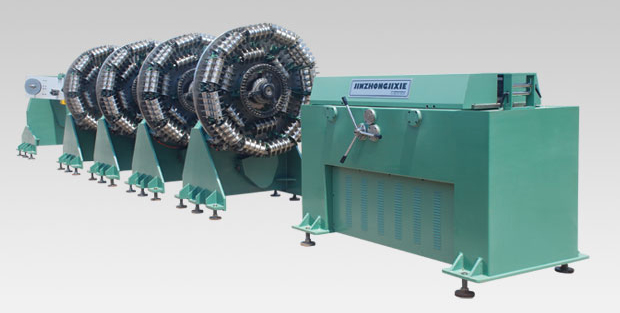

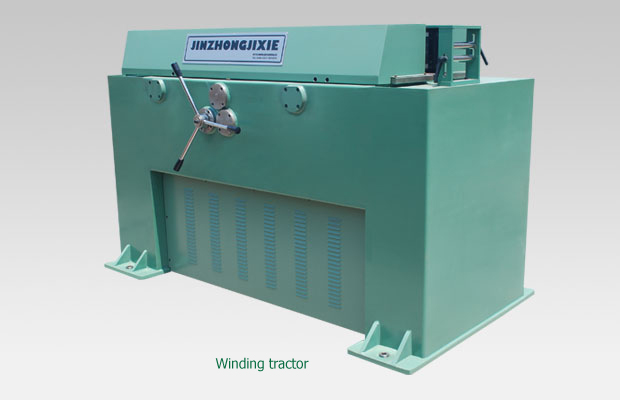

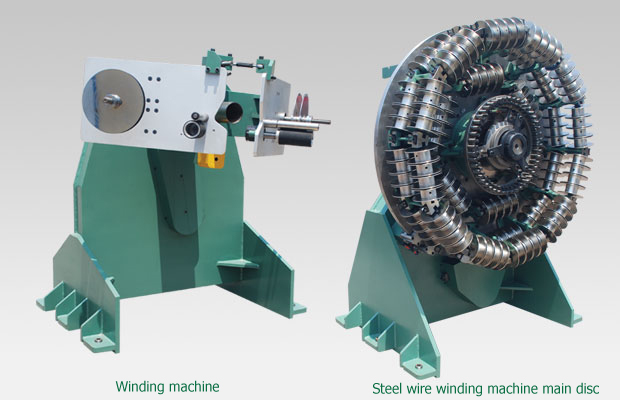

RB Series NC High Speed Wire Winding Machine

Description:

This machine is a new type of CNC high-speed wire winding machine developed, designed and manufactured by our company based on advanced technology at home and abroad. It adopts a new type of in-machine molding technology and a CNC pre-adjustment inflation force function under the machine, and adopts full control control. The winding precision is greatly improved and the winding quality is guaranteed.

RB serles high speed braiding machine strure and features:

1.The steel wire forming on the machine ensures the precision of steel wire forming.
2.The pre-adjustment of winding tension ensures the accuracy of winding tension.
3.The fully enclosed structure improves the operation safety performance.
4.All adopt digital and automatic control (PLC + man-machine interface and servo motor drive).
5.No medium glue parking alarm function.
6.Fixed length winding function.
7.Fault detection function.
8.Three color alarm prompt.

Technical parameters:

RB series CNC high-speed wire winding machine technical parameters
Product model	Winding speed (m/min)	Hose winding range (mm)	Twining pitch (mm)	The central height (mm)	Motor power (kw)	Number of axes per ingot(Z)	Bobbin capacity (kg)	Number of wire roots per plate (root)	Overall dimensions (L×W×H)
RB30-4S	5	Φ6～Φ25	20～170	1290	37.5	4Z	5轴	4Z=120根	11350×2100×2630
RB36-4S	5	Φ25～Φ51	20～170	1290	40.5	4Z	5轴	4Z=144根	12100×2100×2630
						5Z	3.5轴	5Z=180根
RB42-4S	5	Φ25～Φ64	20～170	1290	40.5	4Z	5轴	4Z=168根	12100×2100×2630
						5Z	3.55轴	5Z=210根
